Latest model developed for large sizes and thicker materials.
Cuts up to 650 mm x 550 mm size and even 25 mm thickness with high precision!

Features

Suitable Materials

■ Maximum workpiece size: 650 mm x 550 mm

Shape

Suitable
products

・Smartphone cover glass
・Laminated ceramics
・Laminated optical glass

Type

*Suitable for highly precise cutting of large size workpieces

Structural Advantages

Standard Specifications

Slicing/Dicing Machines

DLS6160/6165

			DLS6160 DLS6165
Chuck table		(mm)	550 x 450 650 x 550
X axis	Maximum cut stroke Feed speed range Minimum setting Drive system & drive source	(mm) (mm/sec) (mm)	1215 1420 1 - 150 0.001 AC servo motor drives a ball screw
Y axis	Maximum cut stroke Minimum setting Index speed Drive system & drive source	(mm) (mm) (mm/sec)	650 710 0.001 1 - 50 Drive ball screw with AC servo motor
Z axis	Maximum cut stroke Minimum index step Index speed Drive system & drive source	(mm) (mm) (mm/sec)	90 0.001 1 - 20 Drive ball screw with AC servo motor
Ｗ axis (θ axis)	Rotation range Minimum resolution	deg (°)	105 0.000088 (360°/4096000P)
Spindle	Type Speed range Motor Blade size	(min-1) (kw) (")	Belt drive, mechanical bearing 600 - 8000 3.7 Magnet motor OD 5 - 6 ID　x φ40 inches
Auto alignment	Type Pixel size Lighting Accuracy	(mm) (mm)	Pattern matching (Reference: fiducial pattern by CCD camera) 0.00375 Vertical lighting ±0.001
Operation panel	Touch panel		Showing the operation switch, cutting data, parameter setting, error massages, etc.
Accuracy	Table top accuracy X axis straightness Yawing Y axis straightness Yawing Y axis index accuracy: Repeatability Y axis index accuracy: Indexing Z axis index accuracy: Repeatability Z axis index accuracy: Positioning W axis index accuracy : Repeatability W axis index accuracy : Absolute accuracy Spindle run out	(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)	0.05/600 x 600 (or mounted chuck top surface) 0.01/600 0.01/650 0.01/600 0.02/650 ±0.05 ±0.05 ±0.01mm/600mm ±0.02mm/600mm ±0.02 ±0.02 ±0.05mm/50mm ±1.3"   ±3.6"   Radial direction runout 0.005

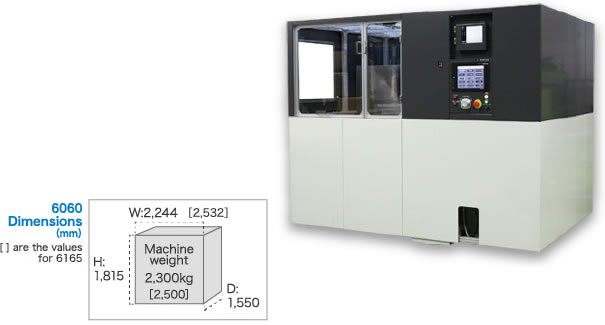

Machine size		(mm)	2,244 (W) x 1,550 (D) x 1,815 (H) 2,532 (W) x 1,550 (D) x 1,815 (H)
Machine weight		(kg)	2,300 2,500
Utilities	Power Power consumption Air source pressure Air consumption	(kVA) (MPa) L/min(ANR)	3 phase 200 V 50/60 Hz 10kVA 0.55 450
Water supply unit	Coolant water pressure Coolant consumption (MAX) Power consumption	(MPa) (l/min) (kVA)	0.3 20 2 kVA (coolant unit)

*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
