Forming MachinesDAS850
Precision feed mechanism allows high positioning accuracy (several um).
High rigidity and high output make forming difficult materials easy!
Features
- 1. An astonishing 15 kW of spindle motor power
- 2. High rigidity and high output easily forms materials that were regarded difficult to grind!
- 3. Perfect for VCM forming!
Suitable Materials
- Type
- Suitable
products - ・Hard and brittle materials
・Metal materials
Structural Advantages
Equipped with 15 kW spindle motor
- Mass production machines for precision machining with high rigidity of each machine component
Latest design significantly improves rigidity
Standard Specifications
Forming Machines
DAS850
| Chuck table size | (mm) | 540x160 | |
|---|---|---|---|
| X axis (Table right and left feed) |
Maximum cut stroke Machining feed speed range Drive system Drive source Axis control system |
(mm) (mm/sec) |
500 0.1～50 Motor/Ball Screw Direct Connection AC servo motor Semi-closed loop control by the axis controller |
| Y axis (Saddle front and back feed) |
Maximum cut stroke Minimum setting unit Index speed Drive system Drive source Axis control system |
(mm) (mm) (mm/sec) |
80 0.001 Max10 Motor/Ball Screw Direct Connection AC servo motor Semi-closed loop control by the axis controller |
| Z axis (Grinding wheel axis vertical feed) |
Maximum cut stroke Minimum index step Max speed Axis drive system Drive source Axis control system |
(mm) (mm) (mm/sec) |
100 0.001 MAX 12.5 Motor/Ball Screw Direct Connection AC servo motor Semi-closed loop control by the axis controller |
| Spindle | Type Speed range Speed setting method Speed control method Drive motor Grinding wheel size |
(min-1) (kw) (mm) |
Mechanical bearing belt drive 1,000 - 3,000 Program command Spindle inverter 15 2P low vibration motor (ID) φ100 x (OD) φ200 |
| Machine accuracy | Yawing along X axis straightness Pitching along X axis straightness Table top accuracy Z axis index repeatability Rotation accuracy of wheel axis : Radial run out Rotation accuracy of wheel axis : Thrust direction runout |
(mm) (mm) (mm) (mm) (mm) (mm) |
0.01/540 0.01/540 0.01 0.005 0.003 or lower 0.003 or lower |
| Utility | Power Maximum power consumption Air pressure Air consumption Coolant water pressure Coolant water amount |
(kVA) (MPa/G) (l/min) (MPa/G) (l/min) |
3-phase AC 200 V 土10% 50/60 Hz 18 0.55 200 0.3 30 |

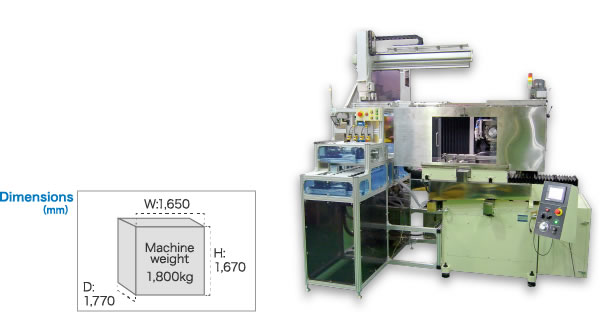

| Machine size | (mm) | (W) 1650 x (D) 1770 x (H) 1670 | |
| Machine weight | (kg) | 1800 | |
*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
