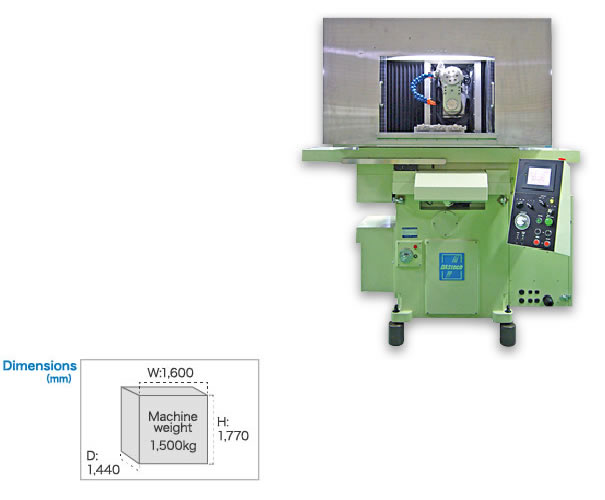

Forming MachinesDAS-W65F
Shortening the flange length and function to support both ends enables high-precision, high-rigidity forming.
Features
- 1. Ideal movement achieved from grinding software developed based on cutting technology
- 2. Exquisitely control the machine with special software
- 3. Shortens the length of the blade flange. Support function for both ends in grinding further increases rigidity!
- 4. Servo motor is adopted for X axis, Y axis and Z axis.
Suitable Materials
■ Maximum workpiece size: 350 mm x 80 mm
- Shape
- Suitable
products - ・Optical glass
・PZT substrates
・Neodymium magnets
- Type
Structural Advantages
Servo motor is adopted for X axis, Y axis and Z axis.
Y axis servo motor
Higher indexing accuracy by deploying servo motors to the X, Y and Z axes.
Operation panel
Right on the spot!
Positioning operations are easy!
Current values and displays are on easy-to-read LCD panels.
Simple display for ease of operation.
Standard Specifications
Forming Machines
DAS-W65F
| Maximum workpiece size | Workpiece size | (mm) | 350 x 80 |
|---|---|---|---|
| X axis | Setting range for cutting speed Drive source Table top accuracy X axis straightness |
(mm/sec) (mm) (mm) |
0.1 - 52 AC servo motor 0.01/350 x 80 Within the horizontal plane 0.01/350, within the vertical plane 0.01/350 |
| Y axis | Effective stroke Max travel speed Drive source Y axis index accuracy |
(mm) (mm/sec) (mm) |
80 10 AC servo motor Accumulative error ±0.005/80, Repeatability ±0.002 |
| Z axis | Effective stroke Max travel speed Drive source Z axis index accuracy |
(mm) (mm/sec) (mm) |
100 Manual handle (0.5 mm/handle rotation) 30 Hydraulic cylinder 0.005 |
| Spindle | Type Maximum rotation speed Rotation speed control Drive motor specification Blade dimensions |
(rpm,MAX) (kw) (mm) |
Mechanical ball bearings 8,000 Inverter 7.5 2P Low vibration motor OD φ150 x ID φ40 |
| Operation panel | LCD panel display Data input Manual pulser |
Present position display, X axis speed display, load current display X axis speed input, X axis cut position input, Z axis escape input Spindle speed input Movement of X/Y/Z axis |
|
| Support axis positioning method | Type | Positioning by special coupling | |
| Clamp drive source | Drive source | Air cylinder | |
| Machine size | Main body only | (mm) | 1,600 (W) x 1,440 (D) x 1,770 (H) |
| Machine weight | Main body only | (kg) | 1,500 |
*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
