Slicing MachinesDAS-W65N
- Features/Dimensions
- Suitable Materials
- Structural Advantages
- Standard Specifications
- Download Our Brochure
Best-seller model compatible with multi-gang blades of up to 200 mm width.
Better accuracy with function to support both ends and suppress vibration and deflection!
Features
- 1. High power spindle for multi-gang blades
- 2. Outstanding maintainability
- 3. Capable for setting various processing patterns
Suitable Materials
■ Maximum workpiece size: 200 mm x 200 mm
- Shape
- Suitable
products - ・Smartphone cover glass
・PZT substrates
・Optical glass
- Type
Structural Advantages
Each axis is controlled by servo motor

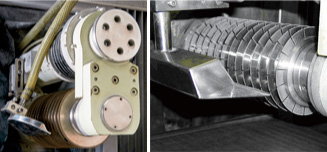

Both ends supported structure for multi gang blade
Tip of multi flange is restrained by bearing-supporting structure.
Achieves high precision cutting and grooving.
Standard Specifications
Slicing Machines
DAS-W65N
| Chuck table size | (mm) | 450 x 200 | |
|---|---|---|---|
| X axis | Effective stroke Feed speed Traverse speed Drive source |
(mm) (mm/sec) (mm/sec) (kW) |
500 0.1 - 100 0.1 - 100 AC servo motor 0.5 |
| Y axis | Effective stroke Traverse speed Drive source |
(mm) (mm/sec) (kW) |
80 0.1～40 AC servo motor 0.5 |
| Z axis | Effective stroke Traverse speed Drive source |
(mm) (mm/sec) (kW) |
100 0.1～20 AC servo motor 0.4 |
| Spindle | Bearing type Maximum speed Rotation speed control Drive motor specification Blade OD |
(min-1) |
Mechanical bearing 8,000 Spindle inverter 7.5KW 2P low vibration motor φ100 - φ150 inches (OD) |
| Operation panel | Touch panel | Showing the operation switch, cutting data, parameter setting, error messages, etc. | |
| Accuracy | Table top accuracy Yawing along X axis straightness Z axis repeatability Spindle rotation run out |
(mm) (mm) (mm) (mm) |
0.02/450 x 200 0.01/500 ±0.005 Radial direction 0.005 |
| Utility | Power Power consumption Air pressure Air consumption Coolant consumption (MAX) Cooler unit power consumption |
(KVA) (MPa) (Nl/min) (l/min) (kVA)m) |
3 phase 200 V 50/60 Hz 12 0.55 300 50 2 |
| Machine size | (mm) | 1,600 (W) x 1,360 (D) x 1,770 (H) (at stop) | |
| Machine weight | (kg) | 1,500 | |
*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
