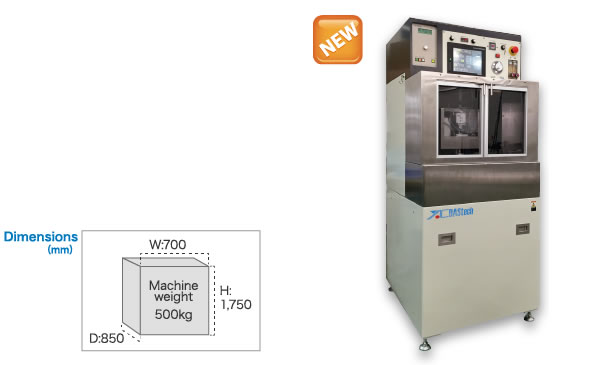

Fully Automated Core Drill MachinesDAR806
- Features/Dimensions
- Suitable Materials
- Structural Advantages
- Standard Specifications
- Download Our Brochure
Equipped with Ultrasonic Spindle!
Suitable for cutting off round shapes from 1mm φ ultrathin filters
Features
- 1. Cutting off small-diameter round shapes from plates
- 2. Handles a wide range of works like ultra-thin filters
- 3. Equipped with the ultrasonic spindle
Suitable Materials
■ Maximum workpiece size: 200 mm x 200 mm
- Shape
- Suitable
products - ・Si substrates
・PZT substrates
・Optical filters
- Type
Structural Advantages
Core drill
- ・Cylindrical diamond blade turns at high speed
・Quick processing with less chipping
Examples for processed optical filter
Standard Specifications
Fully Automated Core Drill Machines
DAR806
| Chuck table dimension | (mm) | 200x200 | ||
|---|---|---|---|---|
| X axis | Effective stroke Minimum setting unit Feed speed range Axis drive system Drive source |
(mm) (mm) (mm/sec) |
200 (processable work width) 0.001 0.1～100 The precision ball screw is driven by the motor. AC servo motor |
|
| Y axis | Effective stroke Minimum setting unit Feed speed range Axis drive system Drive source |
(mm) (mm) (mm/sec) |
200 (processable work width) 0.001 0.1～100 The precision ball screw is driven by the motor. AC servo motor |
|
| Z axis | Effective stroke Minimum setting unit Feed speed range Axis drive system Drive source |
(mm) (mm) (mm/sec) |
100 0.001 0.005～20 The precision ball screw is driven by the motor. AC servo motor |
|
| Workpiece chuck table | Chuck table design Applicable frame Vacuum source |
Porous chuck for tape-cutting 2-8-1 Ejector-type vacuum generator |
||
| Spindle | Type Oscillation frequency tolerance Maximum rated motor power Drill chuck method Speed range Blade size Drill diameter |
(kHz) (W) (min-1) |
Mechanical spindle - 500 Clamp 3,000 - 15,000 Shank size φ6 Available range Φ1.0 – 10.0 |
Ultrasonic spindle 40 (use adjustment knob to fine-tune) |
| Utility | Power source Noise Grounding Power consumption Air pressure Air consumption |
(kVA) (MPa) (l/min（A.N.R）) |
AC 200 V within ±10%, 3-phase 50/60 Hz Less than 2000 V at pulse width 500 ns JIS third class grounding resistance 100 Ω or less 8 (machine) 0.55 80 |
|
| Main dimension | (mm) |
700 (W) x 850 (D) x 1,750 (H) | ||
| Machine weight | Main body | (kg) | 500 | |
*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
