Cutting Machine Lineup
BioslicersDBS210 SAMURAI
The "pull cut" achieves a sharper cutting plane for research in the fields of biology and chemistry.
State-of-the-art cutting technologies propel innovation!
Features
- 1. Pulls while it cuts for a clear section view!
- 2. Chuck table enables freeze fixation at -20℃
- 3. Can bisect living biological samples and dice tissue sections
Structural Advantages
Dicing and slicing of tissue sections
- Continuous cutting in the vertical and horizontal directions allows you to dice tissue sections.
HE staining of tissue sections
Standard Specifications
Bioslicers
DBS210 SAMURAI
| Chuck table dimensions | (mm) | 60×60 | |
|---|---|---|---|
| Maximum workpiece size | (mm) | 10(W)×20(D)×5(H) Please consult us for other sizes. | |
| X axis | Effective stroke Minimum index step Drive source |
(mm) (mm) (mm) |
60 0.001 AC servo motor |
| Y axis | Effective stroke Minimum index step Drive source |
(mm) (mm) (mm) |
40 0.001 AC servo motor |
| Z axis | Effective stroke Minimum index step Drive source |
(mm) (mm) (mm) |
30 0.001 AC servo motor |

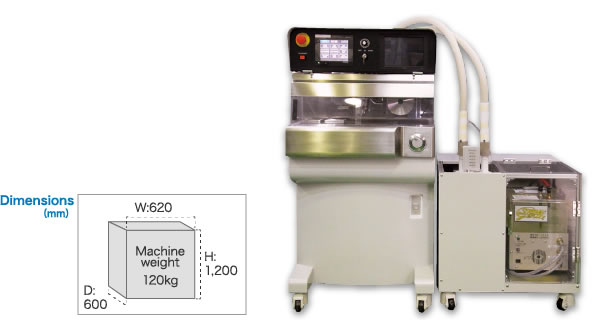

| Main unit size | (mm) | 620(W)×600(D)×1200(H) *Excluding protrusions | |
| Machine weight | (kg) | Approx. 120 | |
| Liquid nitrogen capacity | (L) |
10 | |
*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
Consult us first
